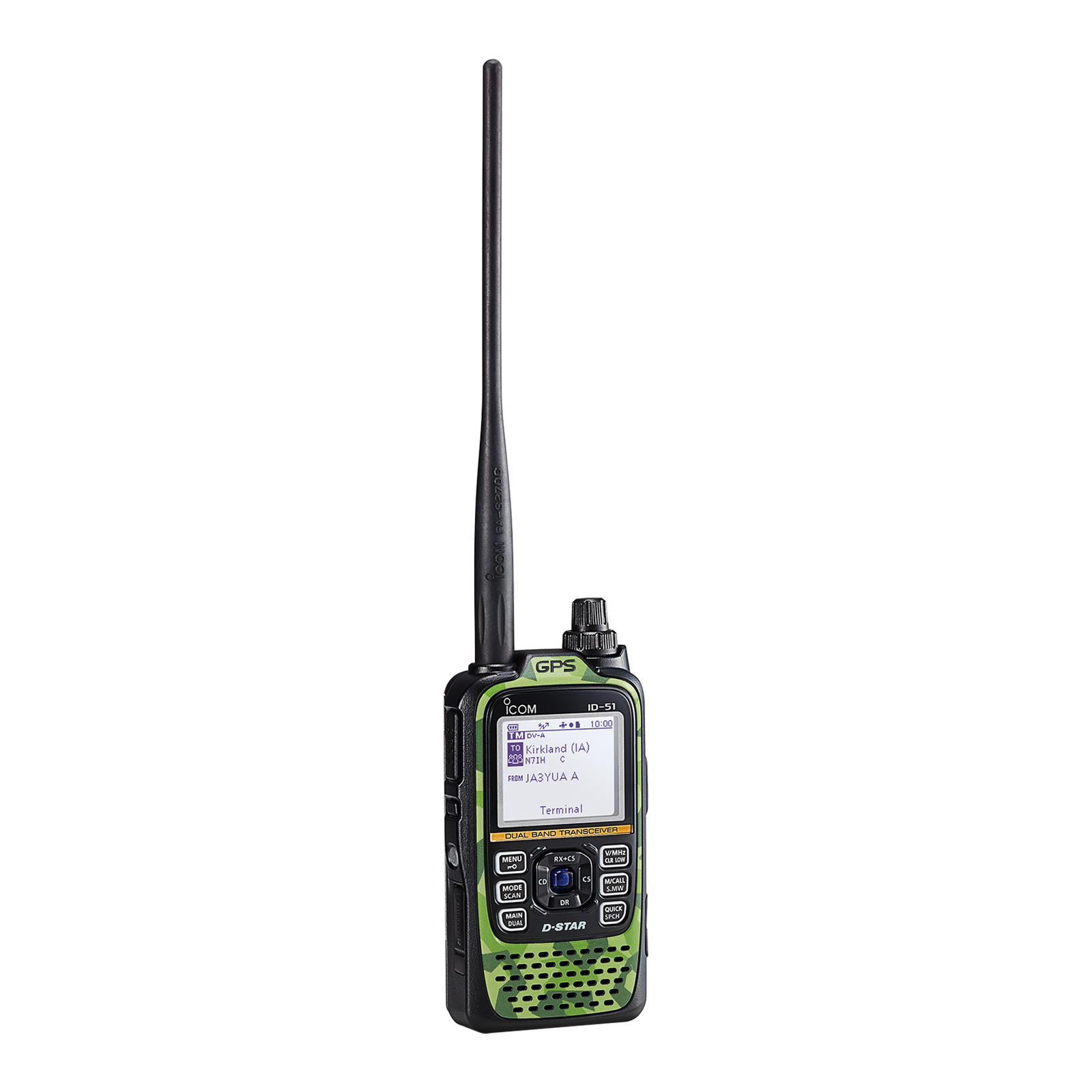

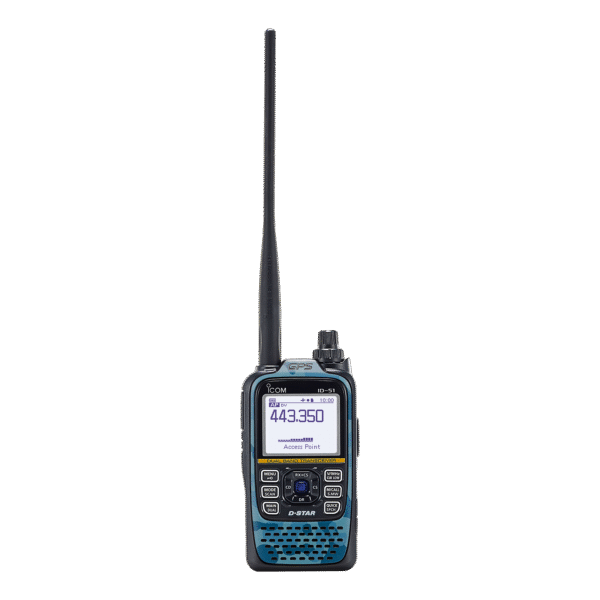

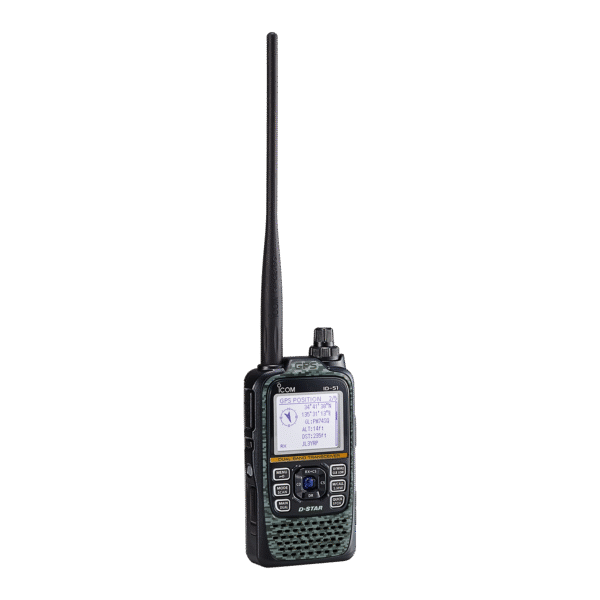

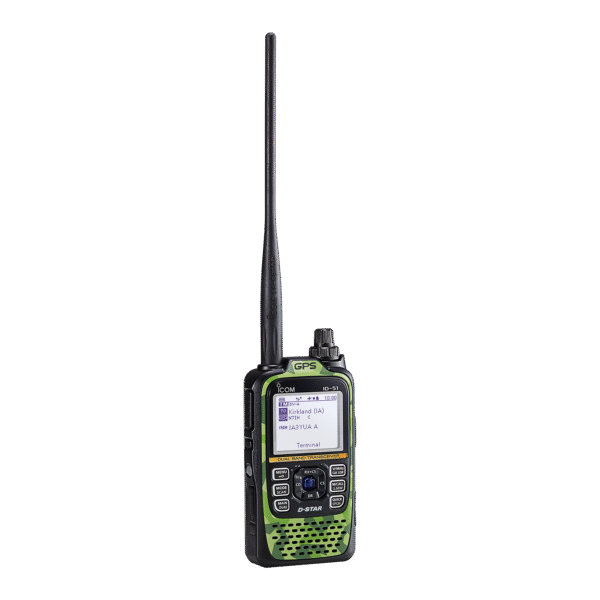

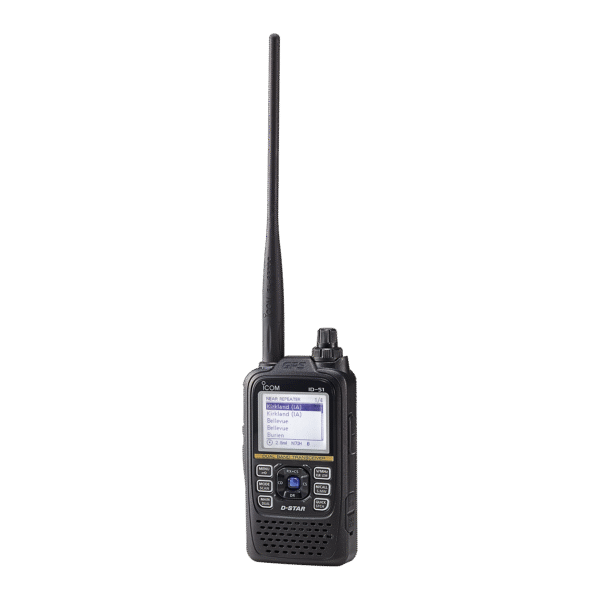

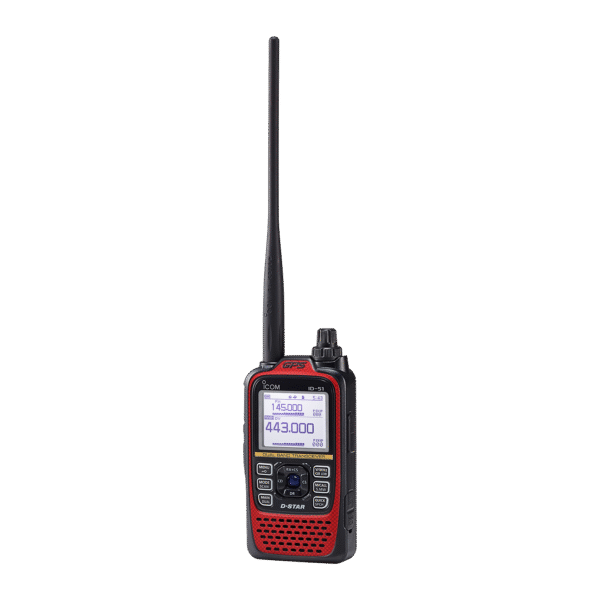

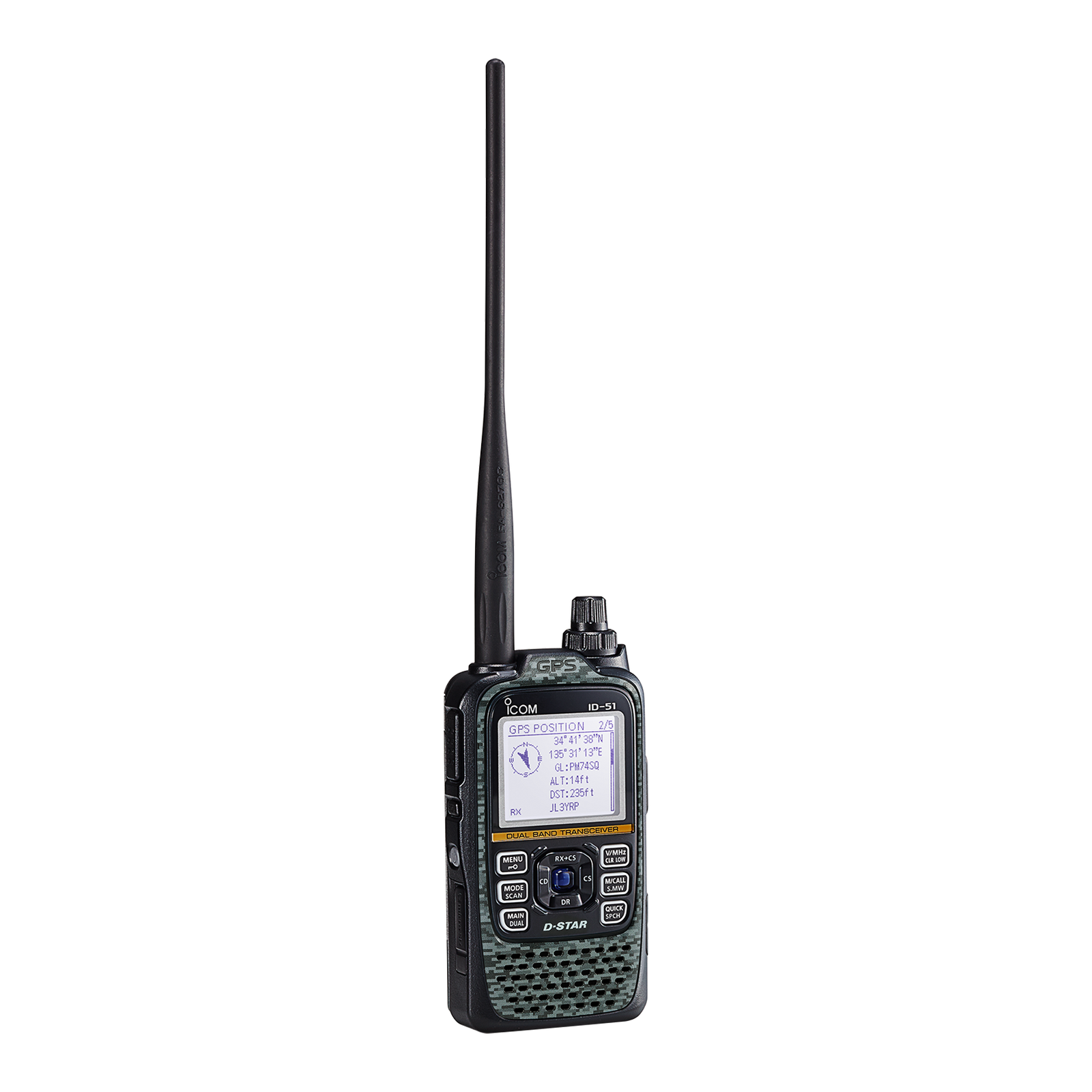

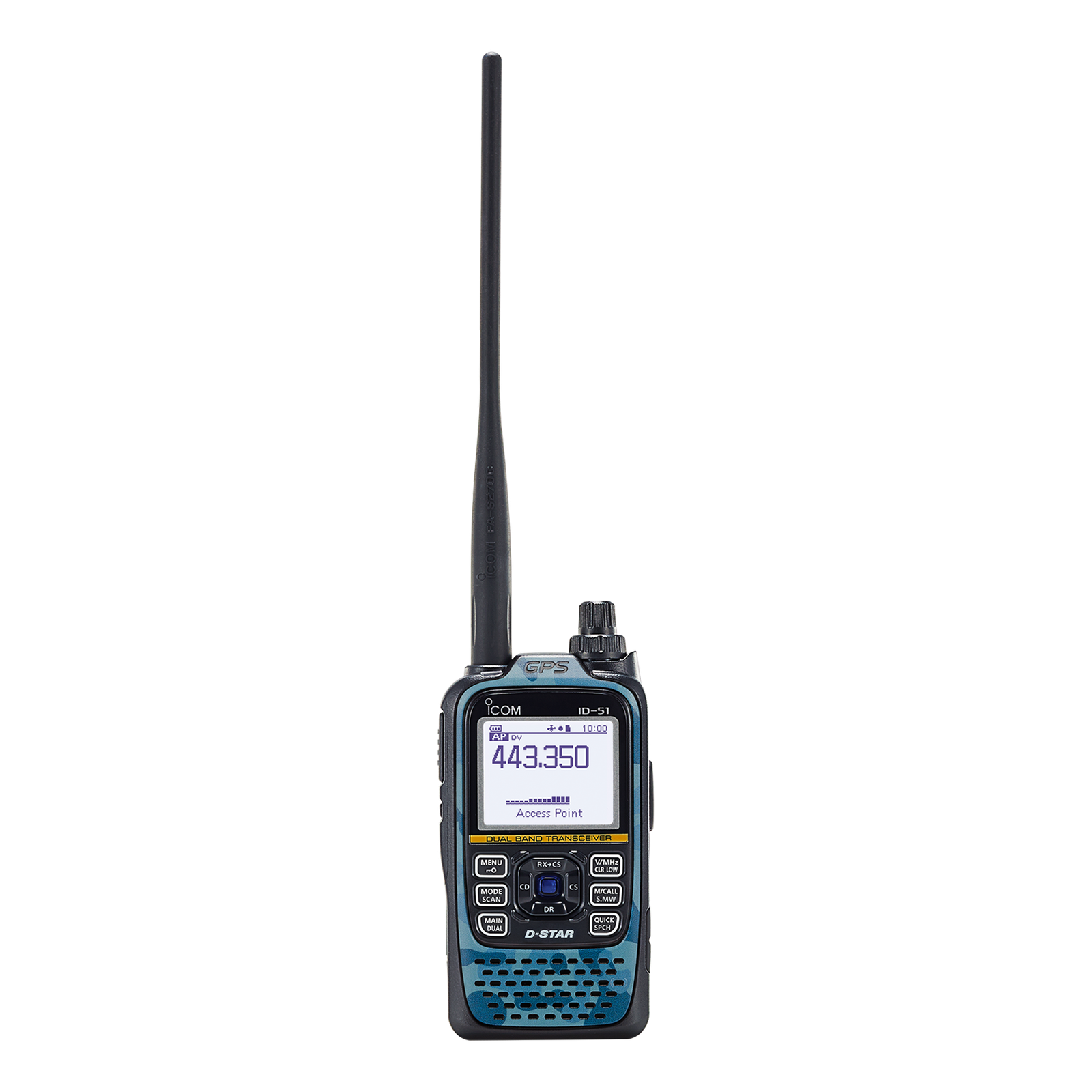

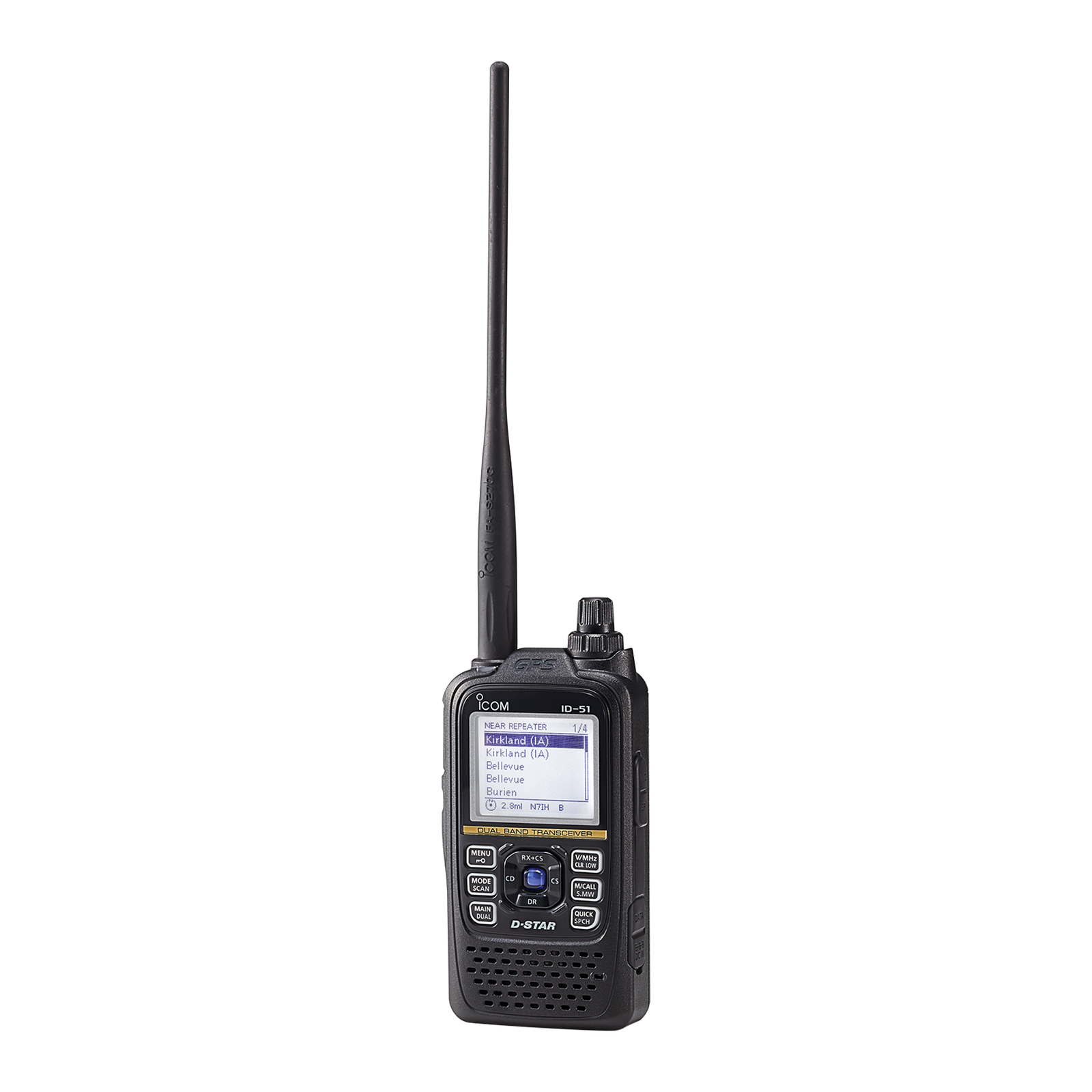

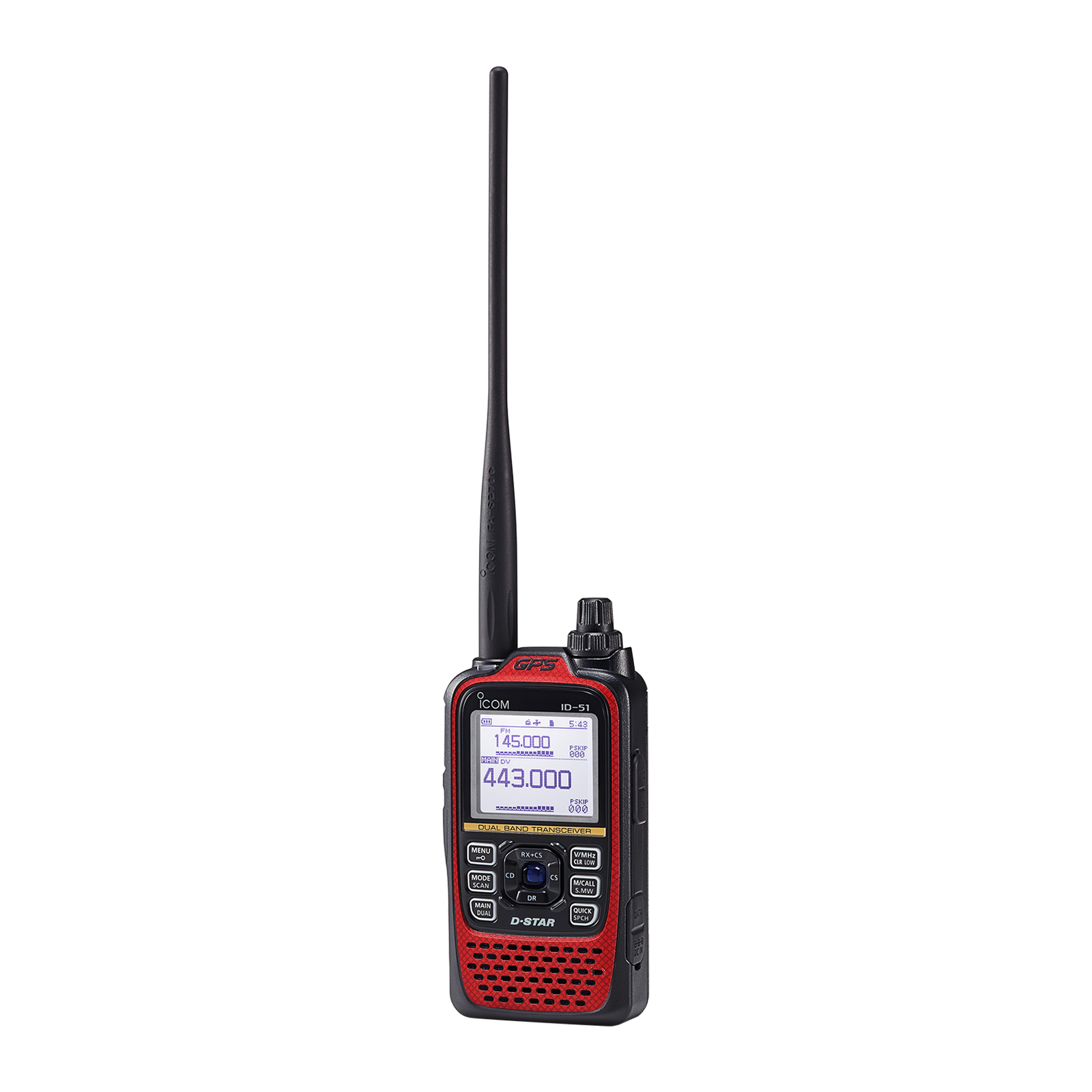

Name: ICOM ID-51APLUS2
SKU: 5840
Availability: InStock

Frequency coverage	U.S.A. version : TX : 144–148, 430–450^* RX : (A) 137–174, 380–479^* (B) 108–174, 380–479^* Broadcast : 0.52-1.71, 88.0-108.0 (A) means A Band, (B) means B band.
Dimensions (W×H×D; Proj. not included)	58×105.4×26.4 mm; 2.28×4.15×1.04 in.
Weight (approx.)	170 g; 6 oz (without battery), 255 g; 8.99 oz (with BP-271 & antenna)
Output power (at 7.4V DC)	5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W (High, Mid, Low2, Low1, S-low)
Sensitivity	DV (at 1% BER) : VHF (Amateur band) Less than 0.28 μV UHF (Amateur band) Less than 0.28 μV FM, FM-N (at 12 dB SINAD) : VHF (Amateur band) Less than 0.18 μV UHF (Amateur band) Less than 0.18 μV 137–174 MHz^* Less than 0.32 μV 380–479 MHz^* Less than 0.32 μV (* Excludes amateur band) WFM (at 12 dB SINAD) : 76.0–81.9 MHz Less than 3.2 μV 82.0–108.0 MHz Less than 1.8 μV AM (at 10 dB S/N) : 0.52–0.995 MHz Less than 3.2 μV 1.00–1.71 MHz Less than 1.8 μV 108.00–136.995 MHz Less than 1.8 μV

* Guaranteed range : 144-148,440-450MHz.

All stated specifications are subject to change without notice or obligation.
