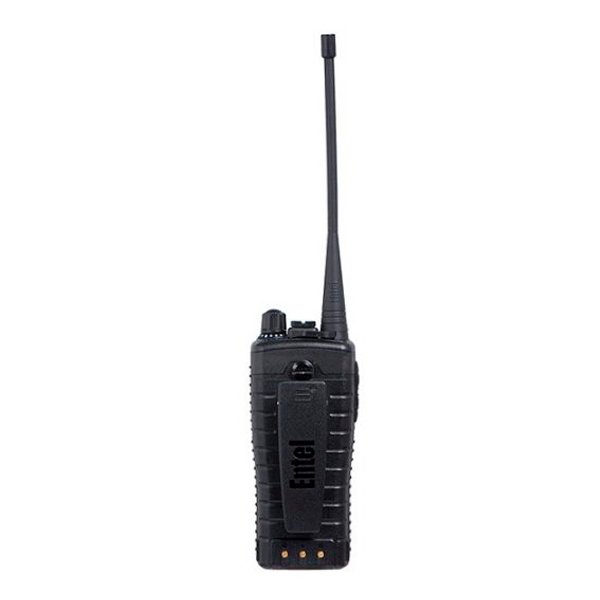

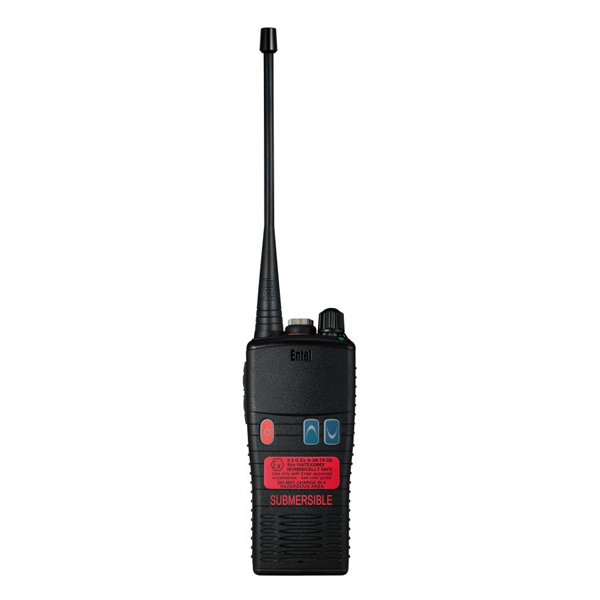

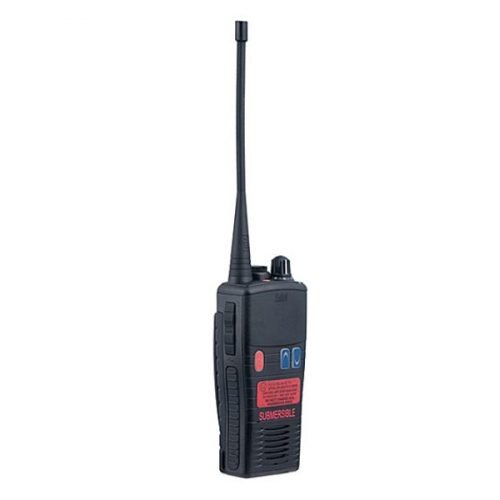

Entel HT982 Analogue Portable Radio

Description

Entel HT982 Analogue Portable Radio .The first time you handle Entel’s HT900 Series 2.0 portables you will be impressed by their superior build quality.

From the rugged ergonomic design that fits comfortably in your hand, to the exceptionally loud audio, the HT900 Series 2 portables easily outclass the competition.

All HT900 Series 2 portables are ATEX (II 2 G Ex ib IIC T4) Intrinsically Safe certified, built to MIL-STD 810 C / D / E / F for tough enduring performance and are fully Submersible to IP68 (2 meters depth for 4 hours).

Entel’s HT900 Series 2 portables will exceed the expectations of even the most experienced radio user.



FEATURES

General

Entry & Sophisticated Models: The Entel HT900 Series 2.0 «Entry» models provide instantaneous Push-To-Talk communications with «Advanced» models adding extra features including Individual & Group calling, Lone-Worker protection, Text messaging etc.

Intrinsically Safe: All HT900 Series 2 portables are ATEX (II 2 G Ex ib IIC T4) Intrinsically Safe certified.

Environmental Protection to IP68 (2 meters for 4 hours): The practical HT900 Series 2.0 portables enjoy an IP68 (2 meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible.

MILSTD 810 C / D / E / F: Meeting MIL-STD 810 C / D / E / F and providing commercial-grade construction for tough, enduring performance. Entel’s HT900 Series 2.0 portables conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble-free use.

1800mAh Li-Ion Battery: HT900 Series 2.0 portables are supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates «memory effect» meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.

Flash Upgradeable to Add Future Features: Entel adds and improves features on its HT900 radios by way of software updates. U Furthermore, the securing bolt incorporates a shearing point to protect the connector.

Channels: All non-display HT900 portables provide 16 programmable channels. Display portables provide 255 programmable channels.



Convenience

VOX Hands-Free (with audio accessory): When using an Entel VOX enabled audio accessory, your HT900 portable can operate totally hands-free. All you need to do is talk and the HT900 portable will automatically transmit for you.

Scan / Priority Scan: The HT900 Series portables have the facility to scan for an active (or free) channel.

Talkaround: Some radio systems use a «repeater» to increase the system’s range. However when you go outside the range of the repeater, communication with another radio is not possible no matter how close you are. Talkaround enables you to talk directly with another radio, bypassing the repeater.

Individual & Group Calling (advanced models only): Entel’s advanced 5-Tone Selcall & MPT1327 Trunking models provide Individual, Group & All Call. The radio’s contact list can be used to select the person to call, as well as speed dials.



Security

Programmable Scrambler (voice inversion): Used to encrypt your voice, protecting against casual eavesdropping.



Safety

Local Personal Attack Alarm: All HT900 portables include a personal attack alarm option. Once activated the speaker of your radio will emit a high pitched siren as a deterrent and provides a local call for assistance.

Should someone fall and become unconscious the optional Man-Down sensor can automatically send the alarm. The radios Lone-Worker timer checks the radios user is ok, if no response is received the radio will automatically send the alarm. The high volume local siren additionally alerts non-radio users in the vicinity to the emergency. This capability can be programmed by your Dealer.



TECHNICAL SPECIFICATIONS



General

• Frequency Range: 400 – 470 MHz
• Channels: Non-LCD 16 Channels, LCD 255 channels
• Channel Spacing: 12.5 kHz / 25 kHz
• Communication Method: Simplex / semi duplex
• Antenna Impedance: 50 ohm
• Antenna: Whip / stubby
• Battery Type: 1800 mAh Li-Ion battery pack
• Power Supply Voltage: 7.4V DC
• Current Drain (nominal): 40mA
• Duty Cycle (5 / 5 / 90): 14.5 hours
• Microphone: Internal condenser microphone
• Construction: MIL-STD 810 C / D / E / F
• IP Rating: IP68 (2 meters depth for 4 hours)
• Operating Temperature: -20° to +55°C
• Size (mm): 59.5(W) x 130(H) x 37(D)
• Weight: 277g with battery and aerial

Transmitter

• Power Output: 1W
• Modulation: 8K0G3E / 16K0G3E
• Oscillator Method: PLL
• Frequency Stability: 2.5PPM
• Maximum Deviation: ±2.5 kHz (Narrow) / ±5 kHz (Wide)
• Audio Distortion: < 5% (1 kHz 60%)
• Spurious Emission: -68 [dBc]
• Hum & Noise: -40 [dB]

Receiver

• Receiver Type: Double Super Heterodyne type
• Sensitivity: -0.25uV (12dB SINAD)
• Frequency Stability: 2.5PPM
• Spurious Rejection: +70 dB
• Adjacent Channel Selectivity: -60 dB (Narrow) / -70 dB (Wide)
• Distortion: < 5% (1 kHz 60%)
• Hum & Noise: -40 dB
• Audio Output: 1W
