Specifications
Physical
- Backlit Keypad & LCD
- DIN-E and ISO Vehicle Mountable
Technical
- PC Programming and Control (with 3rd party software, not included)
- 25,000 Channels
- 16 Character Text Tagging
- 12 Service Searches: Public Safety, News, Ham Radio, Marine, Railroad, Air, CB Radio, FRS/GMRS, Racing, FM Broadcast and Special (Itinerant)
Frequency Coverage
- 25.0000 – 512.0000 MHz
- 758.0000 – 823.9875 MHz
- 849.0125 – 868.9875 MHz
- 894.0125 – 960.0000 MHz
- 1240.0000 – 1300.0000 MHz
FM Bandwidths
- NFM: ~7.5 kHz deviation
- FM: ~15 kHz deviation
- FMB: ~75 kHz deviation
- WFM: >100 kHz deviation
Power Requirements
- Power requirements: AC Adapter (13.8V DC 750mA Regulated) (AD-1009 or equivalent).
- DC:11V to 16.6V(Ext.DC Power Jack or DC 4 Pin Power Plug)
- Power plug: 5.5mm outer diameter, 2.1mm inner diameter
Features
- Ability to flag a channel as Digital, Analog, or All
- Adaptive Digital Threshold – Automatically sets the digital decode threshold for APCO 25 systems
- Adjustable Band defaults
- Adjustable Hold (scan duration 0-255 sec) per system, custom or service search
- Adjustable Priority check interval
- Analog and Digital AGC
- APCO25 Digital Audio decoding
- Band Scope mode
- Broadcast Screen while searching (TV and radio station frequencies, pagers, etc) with 10 custom bands
- Close Call, with Close Call Do Not Disturb, Close Call Priority (or Primary), and Close Call Temporary Store.
- Control Channel Data Output
- Control Channel Only
- Custom Search — lets you program up to 10 search ranges
- DCS/CTCSS Rapid Decode
- Display the Unit IDs (UID) found on trunk systems.
- Duplicate Channel Alert
- EDACS ESK support
- Fire Tone Out alert
- Fire Tone Out Search – built-in frequency counter displays the received tones.
- Frequency/ID AutoStore – automatically store frequencies from a service or limit search into a conventional system or store talk group IDs into a trunked system
- Independent Alert Tone Volume – lets you set the volume level of the following tones: Key Beep, Emergency Alert, Channel Alert, and Close Call Alert.
- Individual channel volume offset
- Intermediate Frequency Exchange – changes the IF used for a selected frequency to help avoid image and other mixer-product interference on a frequency.
- Key Lock – lets you hand the scanner to a novice user and prevent programming from being modified.
- Location Based Scanning
- Multi-Site support
- NAC decoding
- Negative Channel dropout delay (forced resume) adjustable to 0-2,5,10,30, -2, -5, -10 seconds
- Number Tags allows you to quickly navigate to a specific Favorites List, System, and/or Channel.
- Priority Scan
- Private Systems – lets you flag a system so that it cannot be read out of the scanner or modified.
- P25 audio decode level adjustment
- 3 Quick Access Search Keys
- Quick Search
- Repeater Reverse
- Search with Scan for Service and Custom Searches with assigned Quick Keys
- Startup Configuration
- Support for P25 Conventional channels that include NAC and TGID user differentiation (P25 One-Frequency Trunk)
- Temporary System, Site, Group, Channel, and Location Lockout
- Upgradeable firmware
- Can be updated to support Rebanding? YES
- Weather Operations
- Wired Cloning (Will only Clone to another BCD996P2)
In the Box

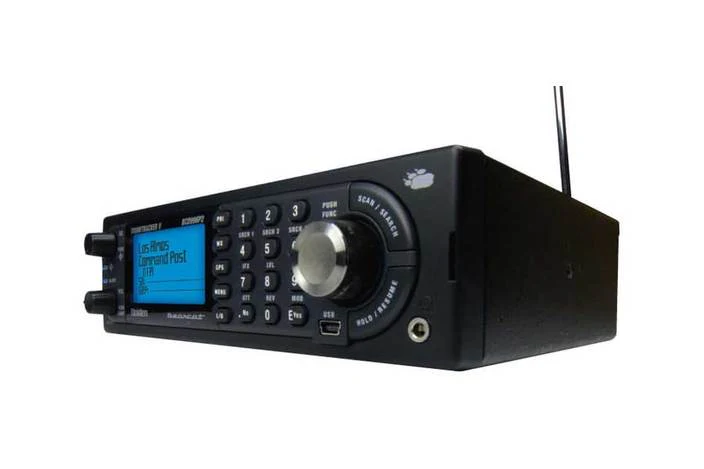

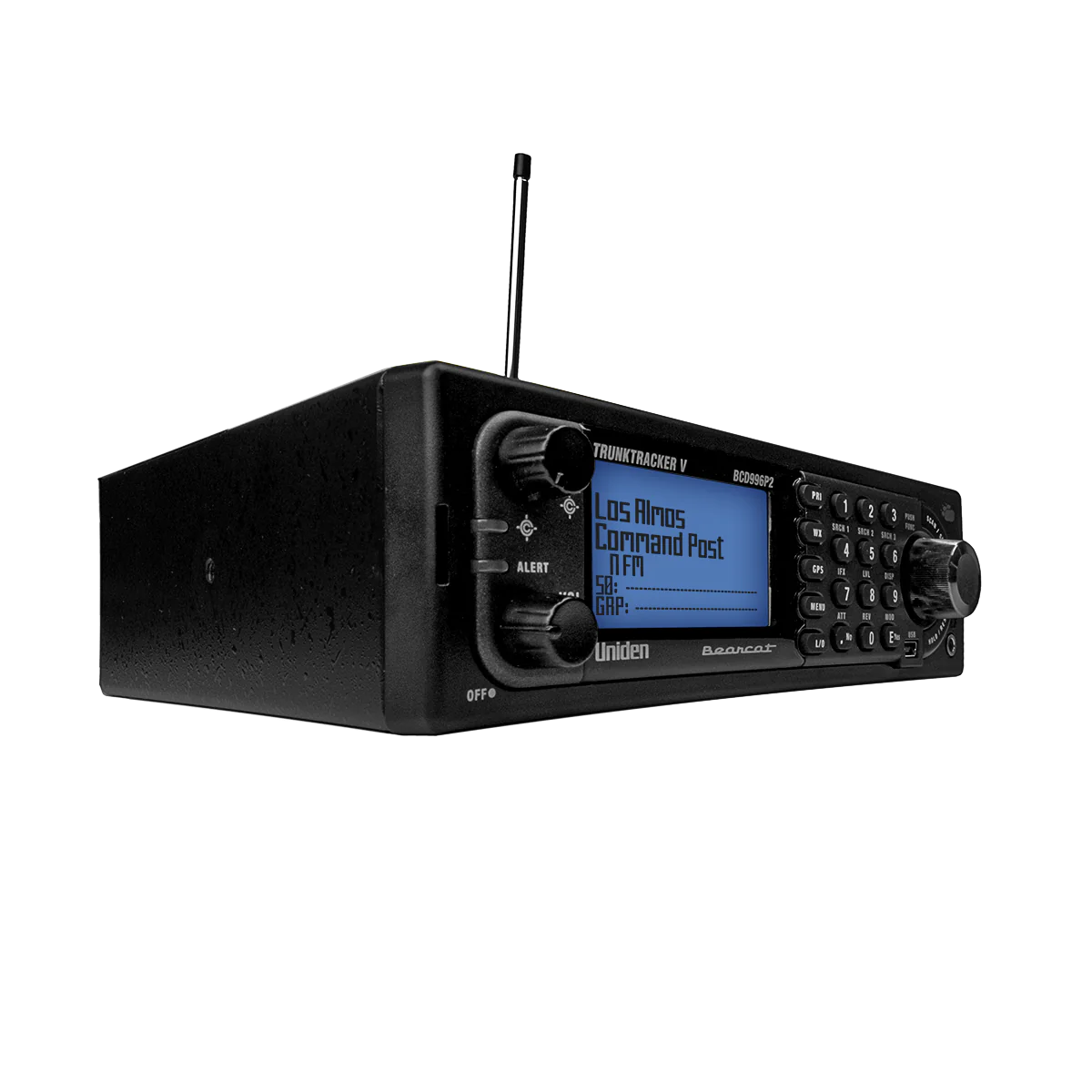

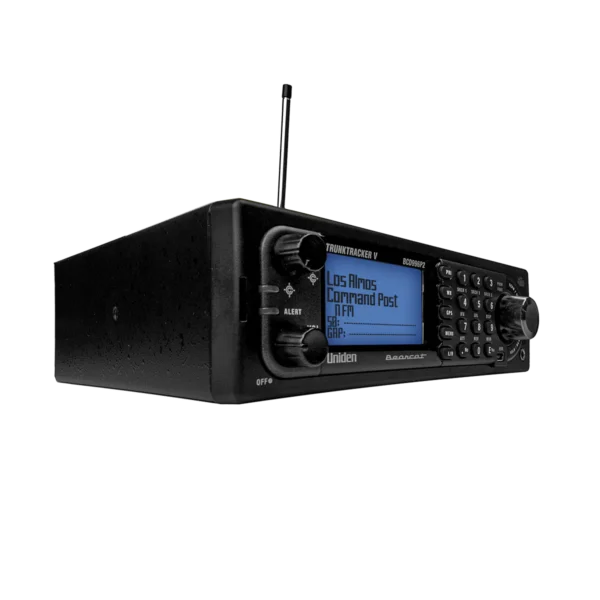

- BCD996P2 Radio
- AC\DC power adapter
- Telescopic antenna
- USB cable (USB Mini-B)
- DC Wiring Harness
- Mounting hardware and owner’s manual
RR System Compatibility
This scanner is compatible with the following Trunking System Types and System Voices used in the RadioReference Database, of course you must verify that the scanner will cover the appropriate frequency range:
- System Types:
- Motorola Type I
- Motorola Type II
- Motorola Type IIi Hybrid
- Motorola Type II Smartnet
- Motorola Type II SmartZone
- Motorola Type II SmartZone OmniLink
- Motorola Type II VOC
- EDACS Standard (Wide)
- EDACS Standard Networked
- EDACS Narrowband
- EDACS Narrowband Networked
- EDACS SCAT
- EDACS ESK
- LTR Standard
- APCO Project 25 Phases I and II
- The following system types are available via upgrade (some are paid upgrades);
